DORUK Steam Peelers for Potatoes, Carrots and Beets
- About 1.5 to 28 t/h of potatoes across six vessel sizes, 125 to 1,250 L (spec sheet)
- Up to 15 bar (218 psi) steam, PLC-controlled recipes, stainless steel construction
- Built to any voltage you specify, with US and Canadian vessel certificates
How it works

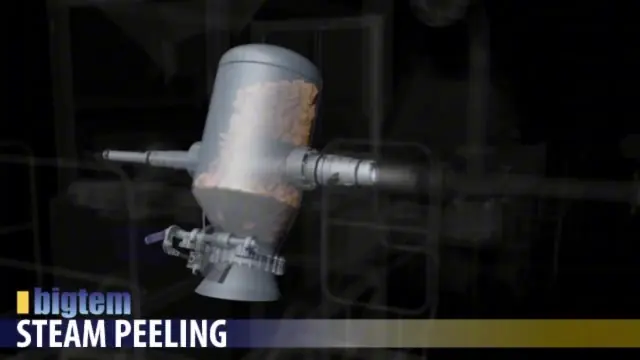

A batch steam peeler heats only the outer layer of the product, then releases the pressure so the skin flashes off.
Weigh & fill
A weighing hopper doses each batch into the pressure vessel.Steam in a rotating vessel
The vessel is sealed, steam is injected and the vessel rotates for all-round exposure.Condensate removal
Condensate is drained so a water layer doesn’t insulate the product and soften the peel effect.Flash release & discharge

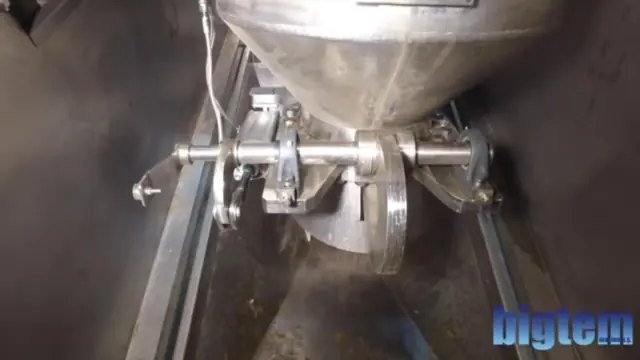

Rapid pressure release lifts the skin. A screw conveyor carries the product to a brush or dry-peel finisher.
System components
- Weighing hopper

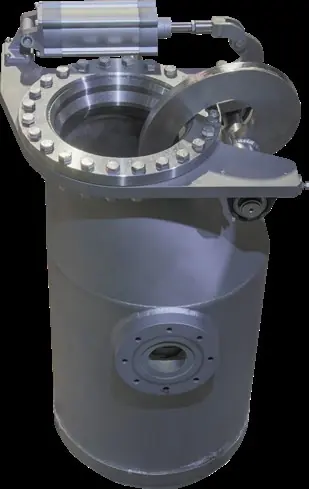

- Pressure vessel
- Blow-off tank
- Access & service platform
- Screw elevator
- Stainless control box with PLC
DORUK model specifications
| Model | Vessel | Fill (approx.) | Feed opening | Potato capacity (approx.) | Steam use | Power | Water | Air |
|---|---|---|---|---|---|---|---|---|
| DORUK 125 | 125 L (33 gal) | 40 kg (88 lb) | Ø250 mm | 1.5–2 t/h (3,300–4,400 lb/h) | 200 kg/h (441 lb/h) | 1.1 kW | 0.5 m³/h (2.2 gpm) | 30 L/min (1.1 cfm) |
| DORUK 250 | 250 L (66 gal) | 80 kg (176 lb) | Ø300 mm | 3–5 t/h (6,600–11,000 lb/h) | 350 kg/h (772 lb/h) | 1.5 kW | 0.8 m³/h (3.5 gpm) | 30 L/min (1.1 cfm) |
| DORUK 400 | 400 L (106 gal) | 125 kg (276 lb) | Ø300 mm | 6–8 t/h (13,200–17,600 lb/h) | 550 kg/h (1,213 lb/h) | 2.2 kW | 1.0 m³/h (4.4 gpm) | 40 L/min (1.4 cfm) |
| DORUK 700 | 700 L (185 gal) | 225 kg (496 lb) | Ø395 mm | 9–14 t/h (19,800–30,900 lb/h) | 900 kg/h (1,984 lb/h) | 2.2 kW | 1.0 m³/h (4.4 gpm) | 40 L/min (1.4 cfm) |
| DORUK 1000 | On request | 320 kg (705 lb) | Ø495 mm | 14–20 t/h (30,900–44,100 lb/h) | 1,200 kg/h (2,646 lb/h) | 5.5 kW | 1.25 m³/h (5.5 gpm) | 50 L/min (1.8 cfm) |
| DORUK 1250 | 1,250 L (330 gal) | 550 kg (1,213 lb) | Ø495 mm | 21–28 t/h (46,300–61,700 lb/h) | 1,500 kg/h (3,307 lb/h) | 5.5 kW | 1.5 m³/h (6.6 gpm) | 60 L/min (2.1 cfm) |
Source: Bigtem Ordinary & Gentle Steam Peelers technical specifications (spec sheet). t/h = metric tonnes per hour. Capacities are approximate and depend on crop, variety, size and condition. Water at 4 bar, compressed air at 8 bar. US units are rounded conversions. All models: maximum steam pressure 15 bar (218 psi). DORUK 1000 vessel volume confirmed per quotation.
Connections (DORUK 125)
Steam inlet DN50 (2 in.) at up to 15 bar, water feed DN50, condensate DN80 and DN15, from the DORUK 125 general arrangement drawing. Connection sizes for other models come with your layout.
Build your equipment ROI case with the free ProcessorROI calculator. A free online tool for rough labor, yield, energy and payback estimates you can bring to a capex meeting. Enter your own plant numbers.
Open the ProcessorROI calculator (external site, opens in a new tab) ↗
Suitable crops
- Potatoes for fries, chips, fresh-cut and dehydrated products
- Sweet potatoes

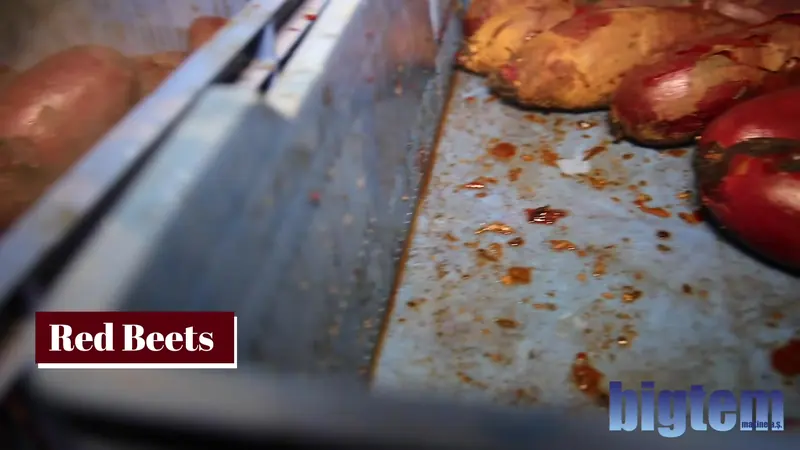

- Carrots, red beets and other root crops
For peaches, tomatoes, peppers and other delicate produce, see the Gentle steam peeler.
Peel loss
Published University of Maine trials on Maine potatoes found lower total peeling loss with steam than with abrasive peeling under the test conditions (UMaine Agricultural Experiment Station Bulletin 624). Results on your crop depend on variety, storage and peel target, so we confirm sizing and settings with your data.
Integrate it into your line
DORUK steam peeler questions
Which model fits about 10 t/h of potatoes?
On the spec sheet the DORUK 700 is rated at about 9 to 14 t/h of potatoes. Final sizing depends on variety, tuber size and peel target, so we confirm it with your data.
How much steam do I need?
From about 200 kg/h (441 lb/h) for the DORUK 125 up to about 1,500 kg/h (3,307 lb/h) for the DORUK 1250, at up to 15 bar (218 psi). We check it against your boiler and header.
Can it run on 480V/60Hz or 575V/60Hz?
Yes. Bigtem builds to any voltage the customer specifies.
Is the pressure vessel certified for my state or province?
Bigtem pressure vessels have US and Canadian certificates. Tell us where the plant is and we confirm the documents that ship with your machine.
What happens to the peel?
Peel is removed in a brush or dry-peel finisher after discharge, which keeps the peel concentrated for handling as by-product.
Can a DORUK replace our old steam peeler?
Yes. See the steam peeler replacement program for aging peelers from any manufacturer.
Get a DORUK model recommendation
Send your crop, tonnage, steam pressure and voltage. We recommend a model and outline the utilities.
